GUNTERMANN AND DRUNCK

GUNTERMANN AND DRUNCK GD-A2100113

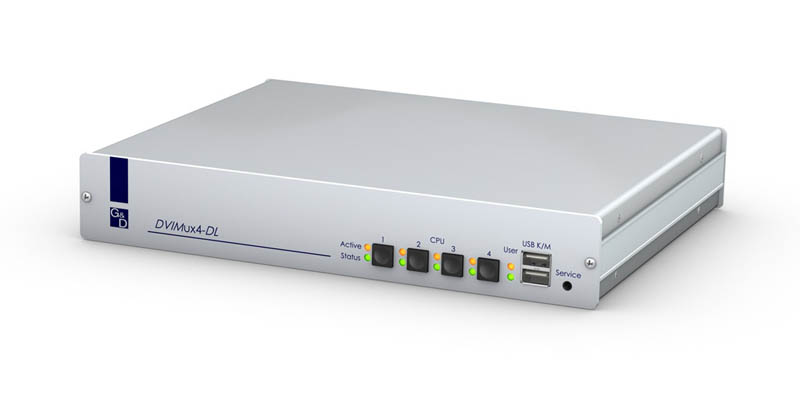

GUNTERMANN AND DRUNCK DVIMUX4-DL-MC4-USB-RM

With DL-MUX4 KVM switches, you can operate 4 computers over 1 user console.

The DL-MUX4 switches the following signals:

• Keyboard/mouse
• Dual-link DVI and VGA
• Audio
• USB 2.0

The device is available in variants transmitting 1, 2, 3, or 4 video channels.

With its network connection, the web interface and DLM monitoring, the DL-MUX4 provides numerous features for mission-critical applications.

The DL-MUX4 MC2 is qualified for the Tempest certification
(Zone 1 / SDIP 27 Level B (ER))

.

P.O.A.

Login for Reseller Pricing

Availability

Quantity

Add To Favourites

click to enlarge

• DESCRIPTION
• SPECIFICATION
• IMAGES
• DOWNLOADS
• RELATED PRODUCTS
• VIDEOS

With DL-MUX4 KVM switches, you can operate 4 computers over 1 user console.

The DL-MUX4 switches the following signals:

• Keyboard/mouse
• Dual-link DVI and VGA
• Audio
• USB 2.0

The device is available in variants transmitting 1, 2, 3, or 4 video channels.

With its network connection, the web interface and DLM monitoring, the DL-MUX4 provides numerous features for mission-critical applications.

The DL-MUX4 MC2 is qualified for the Tempest certification
(Zone 1 / SDIP 27 Level B (ER))

Video

• DVI resolution up to 2560 × 1600 @ 60Hz or 2k × 2k @ 60Hz per channel
• VGA resolution up to 1920 × 1440 @ 75Hz or 2k × 2k @ 60Hz per channel
• Video bandwidth DVI dual-link: 330 Mbps
• Video bandwidth VGA up to 400 MHz
• Digital colour mode 24 bits or analog
• Backward-compatible to single-link

Device

• Accesses only the standard computer interfaces
• Dual network connectivity
• Configuration over web interface
• Redundant power supply
• Requires no software installation
• Available as desktop and rack mount variant
• Shipped in an aluminium casing for best interference resistance
• Hot-pluggable

System upgrade

• Updates through flash upgrades at device and over network (web interface)

The DL-MUX4 MC2 is qualified for the Tempest certification
(Zone 1 / SDIP 27 Level B (ER))

Network / Communication / Safety

• Two network ports
• Configuration over web interface
• Monitoring over SNMP and web interface
• Reports device conditions (temperature, voltage, computer status etc.)
• Identification LED for locating the device in complex installations
• Redundant power supply
• Logbook: electronic notes regarding the device; can be exported as .csv file
• Also available as variant with 12V power supply

DLM monitoring function

The integrated DLM-Monitoring auto-transmits device status messages to syslog servers or sends them as SNMP. Manual monitoring is carried out over the web interface.

The DL-MUX monitoring function queries the following values:

• Power supplies (on/off)
• Temperature limit (above/below average)
• Connection cable (interrupted/uninterrupted)
• Computer (on/off)
• DVI video input (available/not available)
• Access settings (set preferences)

The DLM-Monitoring enables proactive monitoring instead of reactive
maintenance.
