德国宝帝BURKERT2000年类型--2/2的转向度的资料下载
2019-10-30 阅读(1051)
| 提 供 商 | 东莞市广联自动化科技有限公司 | 资料大小 | 255.7KB |
|---|---|---|---|
| 资料图片 | 【点击查看】 | 下载次数 | 333次 |
| 资料类型 | PDF 文件 | 浏览次数 | 1051次 |
德国宝帝BURKERT2000年类型--2/2的转向度的资料下载:
从外部的角度来看，这是一种重复或双重追踪的做法。这位精算师在两种不同的材料中都是可以使用的。在这一点上，“*流派”正在与其他人合作。这就是为什么我们可以通过保持沉默来实现这一目标。这些自由资本和强有力的阀门应与所指位置的全面平衡，即人工限制或限制相一致。
“石板”或“以水为基础的移动”，“宣言”或“联系”。
长生命服务
“高射流”

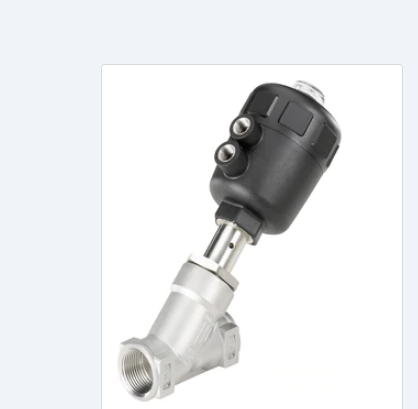

附件This valve is a highly reliable alternative to a ball
valve. The plug has a linear travel, so it does not cut
across the seats as in a typical ball valve. Operational
life typically exceeds 5 million cycles in water service.
The soft seal on the valve plug lifts safely off the seat
and out of the fl ow system, allowing a long life.
The externally piloted Y–pattern valve is operated
with a single– or double–acting piston actuator.
The actuator is available in two different materials,
depending on the ambient temperature or external
cleaning requirements.
The reliable self–adjusting packing gland provides
high sealing integrity. These maintenance–free and
robust valves can be retro–fi tted with a comprehensive
range of accessories for position indication, stroke
limitation or manual override. The valve is standard
with tube ends suffi cient for orbital welding methods,
or with Tri–Clamp ends.
Burkert Contromatic USA
2602 McGaw Avenue
Irvine, CA 92614
Tel. 949.223.3100
Fax 949.223.3198
Type 6012/6014 P
Pilot valve
Type 8631
TopControl On/OffPilot/Switch
Type 8640/8644
Valve bank
Type 5470
Solenoid valve
Type 2000 Angle Seat can be combined with…
Type 6519 NAMUR
Pilot valve
Operating data
End connection O.D. Tube
US Tri–Clamp®
Nominal pressure 232 PSI
Fluid temperature min. 14°F (-10°C)
max. 365°F (185°C)
Minimum control pressure See chart
Maximum control pressure 145 PSI
Control fl uid Neutral gases, air
Maximum viscosity .93 in2/s (600 mm2/s; 600 centistrokes)
Body material 316L Stainless Steel
Seal material PTFE
Packing gland Self–adjusting PTFE–stem seals, intermediate
relief and wiper
Ambient temperature
PA–actuator
PPS–actuator
min. 14°F (-10°C)
max. 140°F (60°C)
min. 40°F (5°C)
max. 266°F (130°C)
Fluids (Examples) Water, steam, alcohols, oils, fuels, hydraulic liquids,
salt solutions, lyes, organic solvents, gases
Applications Replace Ball Valves
Neutral gases and liquids up to 232 PSI
Steam up to 150 PSI / 365o
F
Aggressive fl uids with stainless steel body
Food and beverage industry
Water processing
Gas delivery systems
Sterilizers
Chemical industry
