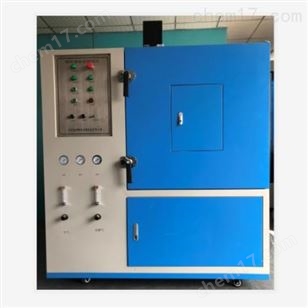

DLMD-A电线电缆烟密度测试仪 （DLMD-A wire and cable smoke density tester）
一.电线电缆烟密度测试仪满足标准： GB/T17651.1、17651.2－1998、IEC61034－１～61034－２：1997标准规定。 （ A wire and cable smoke density tester meets the standard: GB/T17651.1, 17651.21998, IEC610341 ~ 610342:1997 standard.）
工作原理： （Working principle.）
电缆或光缆在特定条件下燃烧的烟密度光测系统由光源、硅光电池接受器和计算机系统组成。光源产生的光通过3m×3m×3m的烟密度实验室，在光源对面的墙上形成一直径1.5m±0.1m 的均匀光束，安装在光束中心处的光电池检测来自光源的光束强度。当燃烧室内由于燃烧电缆或光缆产生大量烟雾时，烟把光电吸收掉一部分，达到硅光电池的光束强度就减弱，通过计算机系统对数据进行处理，就能够计算出相对于初始时为*的具有线性响应的透光率It。 （Smoke density measurement system of cables burning under certain conditions by the light source, the silicon photocell receiver and computer system. Light generated by the smoke density Laboratory of 3M * 3M * 3M, the formation of a uniform beam diameter of 1.5m ± 0.1M light source in the opposite wall, beam intensity light battery installed in the center of the detection light beam from a light source. When the combustion chamber for combustion cable or optical cable produces a lot of smoke, smoke the photoelectric absorption part of the fall, the beam intensity to the silicon photocell is weakened, the computer system to deal with the data, we can calculate the relative to the initial time is * with a transparent linear response rate of It.）
本仪器涉及机械、光学、电子三个方面的专业知识，是机光电一体化产品，具有结构合理、性能稳定、操作简便等优点；具有WINDOWS XP操作系统、LabVIEW风格界面、完善的安全机制。测试期间实时显示测量结果并动态地绘出*曲线，数据可以*保存、调阅和打印输出。 （This instrument relates to professional knowledge in three areas of mechanical, optical, electronic, photoelectric integration is the product, has the advantages of reasonable structure, stable performance, simple operation and so on; with WINDOWS XP operating system, LabVIEW style interface, perfect safety mechanism. During the test display the measurement results in real time and dynamically draw a perfect curve, data can be stored permanently, read and print output.）.
电线电缆烟密度测试仪用途：（Wire and cable smoke density tester）
电线电缆烟密度测试仪与卤酸气体测试仪同时配合使用，是检验电线电缆及光缆低阻燃性电缆评定发烟特性*的专业仪器。 （Wire and cable smoke density test instrument and halogen acid gas tester with the use, is a professional instrument testing of wire and cable and cable low flame retardant cable rating smoke characteristics essential.）
产品组成： （Composition of the product:）
1、可积木式实验室（国标要求的实验室面积为3m×3m×3m，本套系统中的实验室可根据客户的实际场地进行积木调整，实验室中包括挡风板、燃烧盘、试样支架、循环风扇、精密净化稳压电源系统、连接系统、电气控制系统等）；
2、*德国光源系统（标称光源和硅光接收系统）；
3、数据采集处理及计算机全自动控制试验系统；
五.产品性能指标：
1、透光率（吸收率）测试精度±1%
2、标称功率：100W
标称电压：12V
标称光通量: 2000-3000lm
标称色温：2800-3200K
3、电源输入AC220V
4、功率 600W
5、标准光灯功率100 W
6、信号输出RS232C标准电平
Composition of the product：
1, building laboratory (Laboratory of national standard for 3M * 3M * 3M, this system in the laboratory can block adjustment, according to the actual field customers laboratory include windshield, burning plate, sample holder, circulating fan, precision cleaning power supply system, connection system, electrical control system etc.);
2, Germany imported light source system (nominal source and silicon light receiving system);
3,Full automatic control test system, data acquisition and computer
Five. Product performance index:
1, the transmittance (absorption rate) test accuracy of ± 1%
2, the nominal power: 100W
Nominal voltage: 12V
Nominal flux: 2000-3000lm
Nominal temperature: 2800-3200K
3, the power input AC220V
4, power 600W
5, standard light power of 100 W
6, RS232C standard signal output leve
